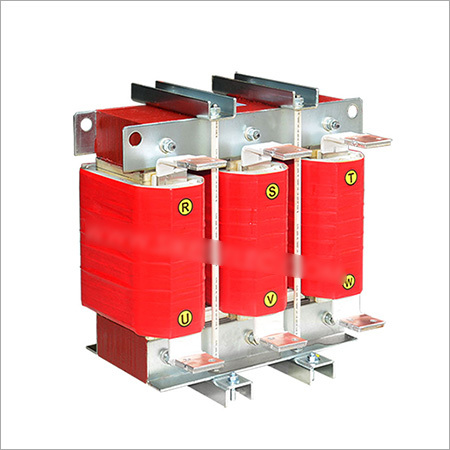

Filtering Reactor

Filtering Reactor
Filtering Reactor
Product Code : SSE 05
Brand Name : SIKES
Product Description

Our association is engrossing as one of the well known manufacturers and suppliers of Filtering Reactor SKS AFER Choke. This series is appropriate for power arrangement of AC 50Hz appraised working voltage up to 6-38KV, with high voltage capacitor amass in arrangement. It can control from the high symphonic shutting surge and working over voltage. The offered range will make capacitor gather work securely, enhance net voltage waveform, upgrade control supply quality and make control net work monetarily. Also, this Filtering Reactor SKS AFER Choke can be available at market leading rates.

Characteristic of this series:

  • Capacity: 3KVA-720KVA
  • Phase type: three phase
  • System voltage: 6.3/6.6/11/12KV
  • Impedance: 1%/4.5%/5%/6%/12%/13%
  • Operating frequency: 50-60Hz
  • Protection class: IP00
  • Insulation class: F/H
  • Industrial standard: GB 10229, IEC289,JB/T5346
Application´╝Ü
  • For power system.

Specification :

Choke

AC/DC

AC

Inductance Value(mH)

0.2

IP Class

IP00

Phase

3 Phase

Nominal voltage range(V)

660

Nominal Current range(A)

500
