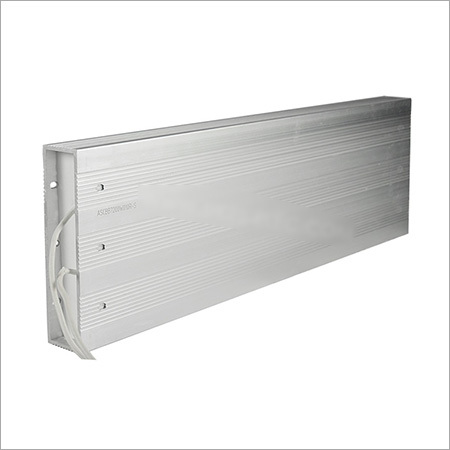

Aluminum Housed Resistor

Aluminum Housed Resistor
Aluminum Housed Resistor
Product Code : SSE 02
Brand Name : SIKES
Product Specifications
  • Product Type
  • resistors
Trade Information
  • Minimum Order Quantity
  • 100
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Sample Available
  • Yes
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • Carton
  • Certifications
  • CE and FCC Certificates
Product Description

As the leading entity, we become prominent manufacturer and supplier of Aluminum Housed Resistor, that are highly efficient and reliable. These Minimized Broader Brake Resistors are electrically protected and with little measurements. They can without much of a stretch be fitted into minimal developments and are particularly intended to persevere through high heartbeat stacks in modern drive frameworks. With more extensive aluminum packaging and waterproof structure, these resistors can withstand rough environment as well. Moreover, these Aluminum Housed Resistors are tested by our deft professionals which are available at market leading costs.

Key Features:

  • High IP class of IP21,IP33,IP55,IP65 waterproof or as required
  • High power , single unit up to 12KW
  • High pulse load and high vibration capability
  • Compact structure,and cool surface
  • No live parts outside
  • Low noise level
  • Low thermal drift
  • Terminals suitable for soldering or bolt connection with high temperature

Specification:

  • Rated power: 4KW to 12KW, based on 25°C free air rating
  • Resistance values: from 1© to as high as 10 K©( to 100 K© on request)
  • Temperature Coefficients: 50,100,200 and 400ppm/°C or as required
  • Operating Temperature:-55°C to +225°C
  • Insulation Resistance: >1000M© (500V 25°C 75% relative humidity)
  • Dielectric strength: >3.0KV 50Hz 1min(25°C 75% relative humidity)
  • IP protection: IP21, IP33,IP55,IP65 or as required
  • Element material: OCR25AL5/CrAlFe/CrNi/CuNi
  • Lead material: Brass Caps(wiring leads available)
  • Vibration grade:>1.5g
  • Application:
  • Capacitor charging & discharging
  • Balancing resistor, crowbar
  • Filter,electrical machinery general use, available through distribution
  • Heavy-duty braking of inverter,variable frequency drives and any other low-wattage load applications

Specification :

Resistor

IP Class

IP21,IP33,IP55,IP65

Nominal Voltage range (V)

12-1200

Power range (W)

4800

Temperature Coefficient

<400ppm/oC
